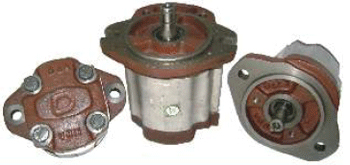

Dowty Pumps

We are Manufacturer, Supplier, Stockist, Services Provider of Dowty Pumps, Dowty Gear Pumps, Double Tandem Pumps, Hydraulic Hand Pumps, Dowty Hydraulic Pumps, Hydraulic Gear Pumps and our set up is situated in Pune, Maharashtra, India.

Gear Pumps 1.2 LPM to 227 LPM, OP 1P, 2P, 3P Series, Tandem Pumps

GROUP OP – P3000 SERIES Performance Data
Pressures quoted are relief valve maximum by-pass Performance with SAE 20W oil at 50° C

Pump Type	Displacement	Delivery @1500 RPM & Pressure P		Maximum Continuous Pressure P		Speed at Maximum Continuous Pressure P
Pump Type	cc/rev	MIN Ipm	MAX Ipm	psi	bar	MAX	MIN
3003	1.27	1.0	1.9	30000	207	4000	700
3004	1.67	1.6	2.5	30000	207	4000	700
3006	2.2	2.3	3.3	30000	207	4000	700
3008	2.87	.3.2	4.3	30000	207	4000	700
3011	3.8	4.5	5.7	30000	207	4000	700
3013	4.47	5.5	6.7	30000	207	4000	700
3015	5.13	6.4	7.7	30000	207	4000	700

GROUP 1P – P3000 SERIES Performance Data
Pressures quoted are relief valve maximum by-pass Performance with SAE 20W oil at 50° C

Pump Type	Displacement	Delivery @1500 RPM & Pressure P		Maximum Continuous Pressure P		Speed at Maximum Continuous Pressure P
Pump Type	cc/rev	MIN Ipm	MAX Ipm	psi	bar	MAX	MIN
3017	6.1	7.8	9.2	3000	207	3500	700
3020	7	8.9	10.5	3000	207	3500	700
3028	9.4	12.2	14.2	3000	207	3500	700
3036	11.9	15.7	17.85	3000	207	3500	700
3044	14.3	18.9	21.5	3000	207	3500	700
3052	16.8	22.9	25.2	3000	207	3500	700
3060	19.2	26.5	28.8	3000	207	3500	700
3072	22.8	31.5	34.3	2525	174	3000	700
3090	28.1	38.8	42.2	2000	138	2400	700

GROUP 2P – P3000 SERIES Performance Data
Pressures quoted are relief valve maximum by-pass Performance with SAE 20W oil at 50° C

Pump Type	Displacement	Delivery @1500 RPM & Pressure P		Maximum Continuous Pressure P		Speed at Maximum Continuous Pressure P
Pump Type	cc/rev	MIN Ipm	MAX Ipm	psi	bar	MAX	MIN
3050	16.67	21.8	25	3000	207	3000	700
3070	22.73	30.7	34	3000	207	3000	700
3090	28.79	39.4	43.2	3000	207	3000	700
3105	33.34	45.8	50	3000	207	3000	700
3120	37.88	52.3	56.8	3000	207	3000	700
3146	45.46	63.8	68.2	2525	174	2500	700
3158	49.40	68.9	74.1	2525	174	2500	700
3220	68.8	96	103.2	2000	138	2500	700

GROUP 3P – P3000 SERIES Performance Data
Pressures quoted are relief valve maximum by-pass Performance with SAE 20W oil at 50° C

Pump Type	Displacement	Delivery @1500 RPM & Pressure P		Maximum Continuous Pressure P		Speed at Maximum Continuous Pressure P
Pump Type	cc/rev	MIN Ipm	MAX Ipm	psi	bar	MAX	MIN
3150	47.07	65.3	70.6	3000	207	2500	700
3180	56.17	78.2	84.2	3000	207	2500	700
3210	65.23	91.7	97.8	3000	207	2500	700
3250	77.15	109.0	115.7	3000	207	2500	700
3300	92.03	130.6	138.0	2525	174	2500	700
3330	101.71	144	152.6	2300	159	2500	700
3380	116.78	166.1	175.2	2000	138	2500	700
3500	153.66	217.9	230.5	1500	100	2500	700

Double Tandem Pump

Hand Pump
